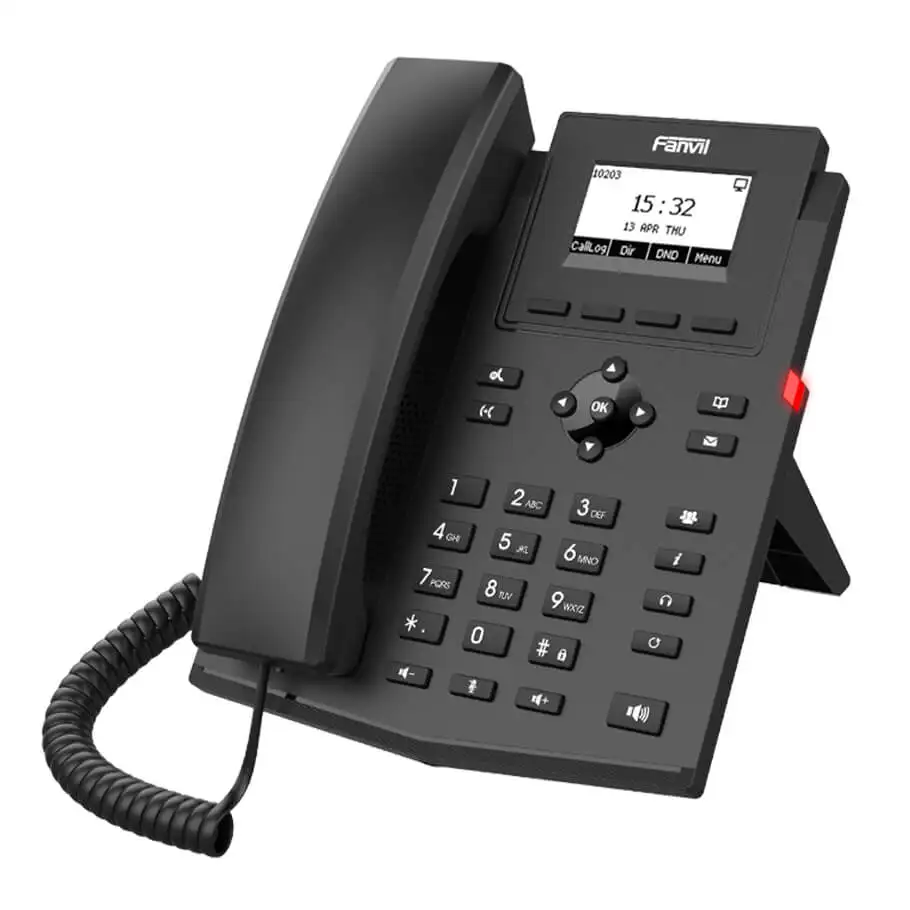

Điện thoại IP Fanvil X301
– Fanvil X301 là dòng điện thoại IP màn hình ma trận điểm 128 x 48 pixel 2.3-inch, hỗ trợ 2 tài khoản SIP.
– Hỗ trợ tính năng SIP hotspot.
– Hỗ trợ 2 jack RJ45, jack cắm tai nghe RJ9.
– Âm thanh HD.
– Danh bạ lưu 1000 số, nhật ký (In/Out/Missed) 600.
– Hỗ trợ G.711a/u, G.726-32K, G.729A, iLBC, G.722, Opus.
– Tích hợp quản lý Cloud.
Đặc tính kỹ thuật
| Generic | – 2 SIP Lines – HD Voice – Dot-matrix display screen – Handset/ Hands-free/ Headset mode – Desktop Stand/ Wall mountable (optional) – Optional External Power Supply |
| Phone Functions | – Local Phonebook (1000 entries) – Remote Phonebook (XML/LDAP, 1000 entries) – Call logs (In/Out/Missed, 600 entries) – Blocked List/Allowed List – Voice Message Waiting Indication (VMWI) – Programmable DSS/Soft keys – Network Time Synchronization – Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable) – Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable) – Support Recording (Through Server) – Action URL / Active URI – uaCSTA |
| Call Functions | – Call out/Answer/Reject – Mute/ Unmute (Microphone) – Call Hold/ Resume – Call Waiting – Intercom – Caller ID Display – Speed Dial – Anonymous Call (Hide Caller ID) – Call Forward(Always/Busy/No Answer) – Call Transfer (Attended/Unattended) – Call Parking/Pick-up (Depending on server) – Redial – Do-Not-Disturb – Auto-Answering – Voice Message (with server) – 6-way Conference – Hot Line – Hot desking |
| Audio | – HD Voice Microphone/Speaker – Wideband ADC/DAC 16KHz Sampling – Narrowband Codec: G.711a/u, G.723.1,G.726,G.729A/B, iLBC – Wideband Codec: G.722, Opus – Full-duplex Acoustic Echo Canceller (AEC) – Voice Activity Detection (VAD)/ Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE)/ Noise Reduction (NR)/ Automatic Gain Control (AGC) – Packet Loss Concealment (PLC) – Dynamic Adaptive Jitter Buffer – DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO) – VQM voice quality monitoring |
| Network | – Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass – IP Mode: IPv4/IPv6 – IP Configuration: Static IP / DHCP / PPPoE – Network Access Control: 802.1x – VPN: L2TP / OpenVPN – VLAN – LLDP – QoS – RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) |
| Protocols | – SIP2.0 over UDP/TCP/TLS – RTP/RTCP/SRTP – STUN – DHCP – IPV6 – LLDP – PPPoE – 802.1x l L2TP – OpenVPN – SNTP – FTP/TFTP – HTTP/HTTPS – TR-069 – AES128 & AES256 |
| Deployment & Management | – Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069 – Web Management Portal – Web-based Packet Dump – Configuration Export / Import – Phonebook Import/Export – Firmware Upgrade – Syslog |
| Physical Specifications | – LCD: 128×48 pixel graphical LCD with backlight – Keypad: 33 keys, including + 4 Soft-keys + 9 Function keys (Hold/Transfer/Voice message/Conference/Phonebook/MWI/Headset/Redial/Hands-free) + 4 Navigation keys + 1 OK key + 12 Standard Phone Digits keys + 3 Volume Control keys (Up/Down/Mute (Microphone)) – Handset (RJ9) x1 – Standard RJ9 Handset Wire x1 – 1.5M CAT.5E Ethernet Cable x1 – Desktop Stand x1 – Status Indicator Light x1 (Red) – RJ9 Port x2: Handset x1, Headset x1 – RJ45 Port x2: Network x1, PC x1 (Bridged to Network) – Security Slot x1 – DC Power Input: 5V/0.6A – Power Consumption(Adapter): 0.8~1.29W – Power Consumption(PoE): 1.25~1.86W – Working Temperature: 0~45℃ – Working Humidity: 10~95% – Installation: + Desktop Stand + Wall mountable (optional) – Wall mountable (optional ) – Color: Black |
– Bảo hành: 24 tháng.
