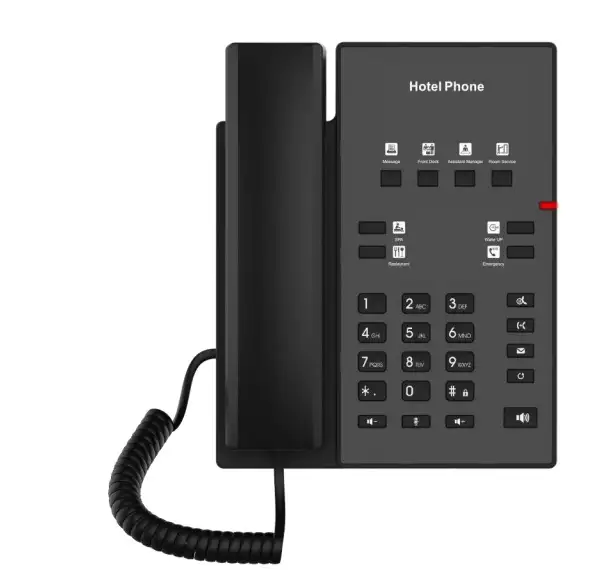

Điện thoại IP cho khách sạn Fanvil H1
– Điện thoại IP Fanvil H1 chuyên dụng cho khách sạn hỗ trợ 2 SIP line.
– Hỗ trợ 8 phím có thể lập trình cho các chức năng quay số nhanh tùy chọn.
– Hỗ trợ cổng mạng RJ-45 10/100Mbps.
– Hỗ trợ PoE.
Đặc tính kỹ thuật
| Generic | – 2 SIP Lines – HD Voice – PoE – Hand set/Hands-free mode – Intelligent DSS Keys (speed dial key) – Desktop Stand/Wall Mountable(optional) – Optional External Power Supply |
| Phone Functions | – Call logs (In/Out/Missed, Max support 600 records in the web) – Programmable DSS/soft keys – Action URL/Active URI – Web dial – Dial plan – SIP Hotspot – Distinctive ring – Multicast |
| Call Functions | – Call out/Answer – Mute/Unmute – Call Hold/Resume – Speed Dial – Redial – Call Forward (Always/Busy/No Answer) – Call Transfer (Attended/Unattended) – Hot Line – Voice Message |
| Audio | – Wideband ADC/DAC 16KHz sampling – Narrowband codec: G.711A/U, G.729AB, G723.1, G726, iLBC – Wideband codec: G.722, Opus – Full-duplex hands-free speakerphone with AEC – Voice Activity Detection (VAD)/Comfort Noise Generation (CNG)/Background Noise Estimation (BNE)/Noise Reduction(NR)/Automatic Gain Control (AGC) – Packet Loss Concealment (PLC) – Dynamic Adaptive Jitter Buffer – DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) /SIPINFO – VQM voice quality monitoring |
| Network | – 10/100 Mbps Ethernet – IP Mode:IPv4/IPv6/IPv4&IPv6 – IP Configuration: Static / DHCP / PPPoE – Network Access Control: 802.1x – VPN: L2TP/OpenVPN – VLAN: 802.1P/Q – QoS – LLDP – RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035) |
| Protocols | – SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS – RTP/RTCP/SRTP STUN – DHCP – IPv6 – PPPoE – L2TP – OpenVPN – SNTP – FTP/TFTP – HTTP/HTTPS – TR-069 |
| Deployment & Management | – Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069 – Web management portal – Web-based packet dump – Configuration export / import – Firmware upgrade – Syslog |
| Physical Specifications | – Keypad: 28 keys, including + 12 Standard Phone Digits keys + 8 DSS keys + 4 Function keys (Hold, Call Transfer, Redial, MWI) + 3 Volume Control keys, Up/Down/Mute(with red color LED) + 1 hands-free key – MSG indicator (with red color LED) x1 – Handset (RJ9) x1 – Standard RJ9 Handset Cord x1 – 1.5M CAT5 Ethernet Cable x1 – RJ9 Port x1: Handset x1 – RJ45 Port x1: Network x1 – Power: 5V/0.6A or PoE – Power Consumption (PoE): 1.28W~ 2.12W – Power Consumption (Adapter): 0.669W~ 1.438W – Working Temperature: 0~45℃ – Working Humidity: 10~95% – Installation: + Desktop + Wall Mountable (optional) – Color: Black |
– Bảo hành: 24 tháng.
