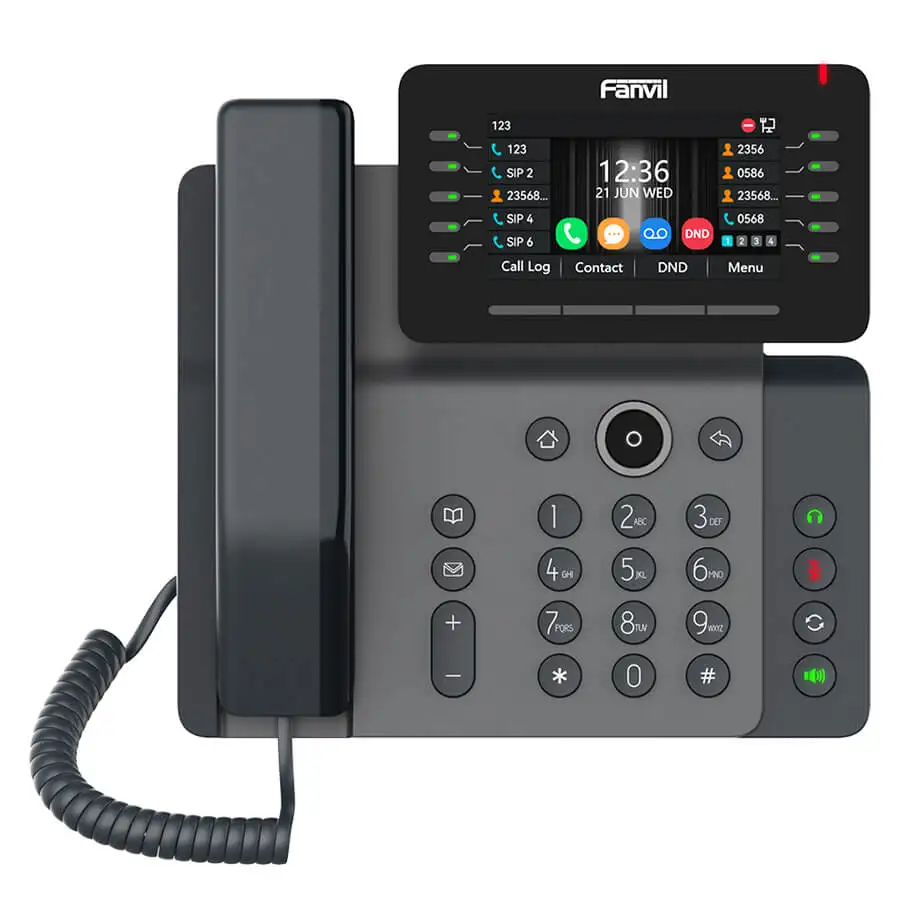

Điện thoại IP Wifi Fanvil V65
– Hỗ trợ 20 tài khoản SIP.
– 2 Cổng Gigabit kép 10/100/1000, PoE tích hợp.
– Màn hình màu 4.3 inch.
– Tích hợp Bluetooth 5.0 cho phép ghép nối thiết bị PC, Mobile
– 10 Phím cứng DSS.
– Tích hợp WiFi 2.4G/5G, 1 cổng USB (hỗ trợ tai nghe USB).
Đặc tính kỹ thuật
| Generic | – 20 SIP lines – HD voice – Support receiving Video call – PoE enabled – 4.3-inch (480×272) color screen – Handset / hands-free / headset mode – Intelligent DSS keys – Desktop stand / wall-mounted (need an additional wall hanging parts) – Optional external power supply |
| Phone Features | – Local Phonebook (2000 entries) – Remote Phonebook (XML/LDAP, 2000 entries) – Call logs (In/out/missed, 1000 entries) – Blocked List/Allowed List – Screen saver l Voice Message Waiting Indication (VMWI) – Programmable DSS/Soft keys l Network Time Synchronization l Built-in Bluetooth 5.0: Support Bluetooth headset/ Pairing mobile devices – Built-in Wi-Fi + 2.4GHz, 802.11 b/g/n + 5GHz, 802.11 a/n/ac – Support Plantronics wireless headset (Through PlantronicsAPD-80 EHS Cable) – Support Jabra wireless headset (Through Fanvil EHS20EHSCable) – Support Recording(through server) – Action URL / Active URI – uaCSTA – SIP Hotspot – Multicast – Action Plan – Group listening |
| Call Features | – Call out / Answer / Reject – Mute / Unmute (Microphone) – Call Hold / Resume – Call Waiting – Intercom – Caller ID Display – Speed Dial – Anonymous Call (Hide Caller ID) – Call Forwarding (Always/Busy/No Answer) – Call Transfer (Attended/Unattended) – Call Parking/Pick-up (Depending on server) – Redial – Do-Not-Disturb – Auto-Answering – Voice Message (With server) – 6-way Conference – Hot Line – Hotdesking – BLF |
| Audio | – HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response) – HAC handset – Wideband ADC/DAC 16KHz Sampling – Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC – Wideband Codec: G.722, Opus – Full-duplex Acoustic Echo Canceller (AEC) – Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC) – Packet Loss Concealment (PLC) – Dynamic Adaptive Jitter Buffer – DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO) – VQM voice quality monitoring |
| Video | – Video decoding: H.264 – Video call resolution: QVGA/CIF/VGA/4CIF/720P/1080P |
| Network | – Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass – IP Mode:IPv4/IPv6/IPv4&IPv6 – IP Configuration: Static IP / DHCP / PPPoE – Network Access Control: 802.1x l VPN: OpenVPN/L2TP – VLAN – LLDP – CDP – QoS – RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) |
| Protocols | – SIP2.0 over UDP/TCP/TLS – RTP/RTCP/SRTP – STUN – DHCP – CDP – LLDP – PPPoE – 802.1x – OpenVPN – SNTP – FTP/TFTP – HTTP/HTTPS – TR-069 – AES128 & AES256 |
| Deployment & Management | – Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069 – Web Management Portal – Web-based Packet Dump – Configuration Export / Import – Phonebook Import/Export – Firmware Upgrade – Syslog |
| Physical Specifications | – LCD: 4.3 inch (480×272) color screen,IPS – Keypad: 41 keys, including + 10 DSS keys with LED indicator light + 6 Function keys (Contact, Hold, MWI, Mute, Headset, Redial) + 4 Soft-keys + 4 Navigation keys + 1 OK key + 1 Return key + 12 Standard Phone Digits keys + 2 Volume Control keys, Up/Down + 1 Hands-free key – HD Handset (RJ9) x1 – Standard RJ9 Handset Wire x1 – 1.5M CAT5.E Ethernet Cable x1 – Desk Stand x1 – Status Indicator Light x1 (Red) – RJ9 Port x2: Handset x1, Headset x1 – RJ45 Port x2: Network x1, PC x1 (Bridged to Network) – USB2.0 Port x1: Standard A, Connect with Flash Driver&USBheadset – Security lock port x1 – Power: DC5V/2A or PoE – Working Temperature: 0~45℃ – Working Humidity: 10~95% – Installation: + Desktop Stand + Wall-mounted (need an additional wall hanging parts) – Color: Gunmetal – Device Dimensions:228x222x37.4mm – Gift Box Dimensions: 327x258x71 mm – Outer CTN Dimensions: 536x375x347 mm(10 PCS) |
– Bảo hành: 24 tháng.
